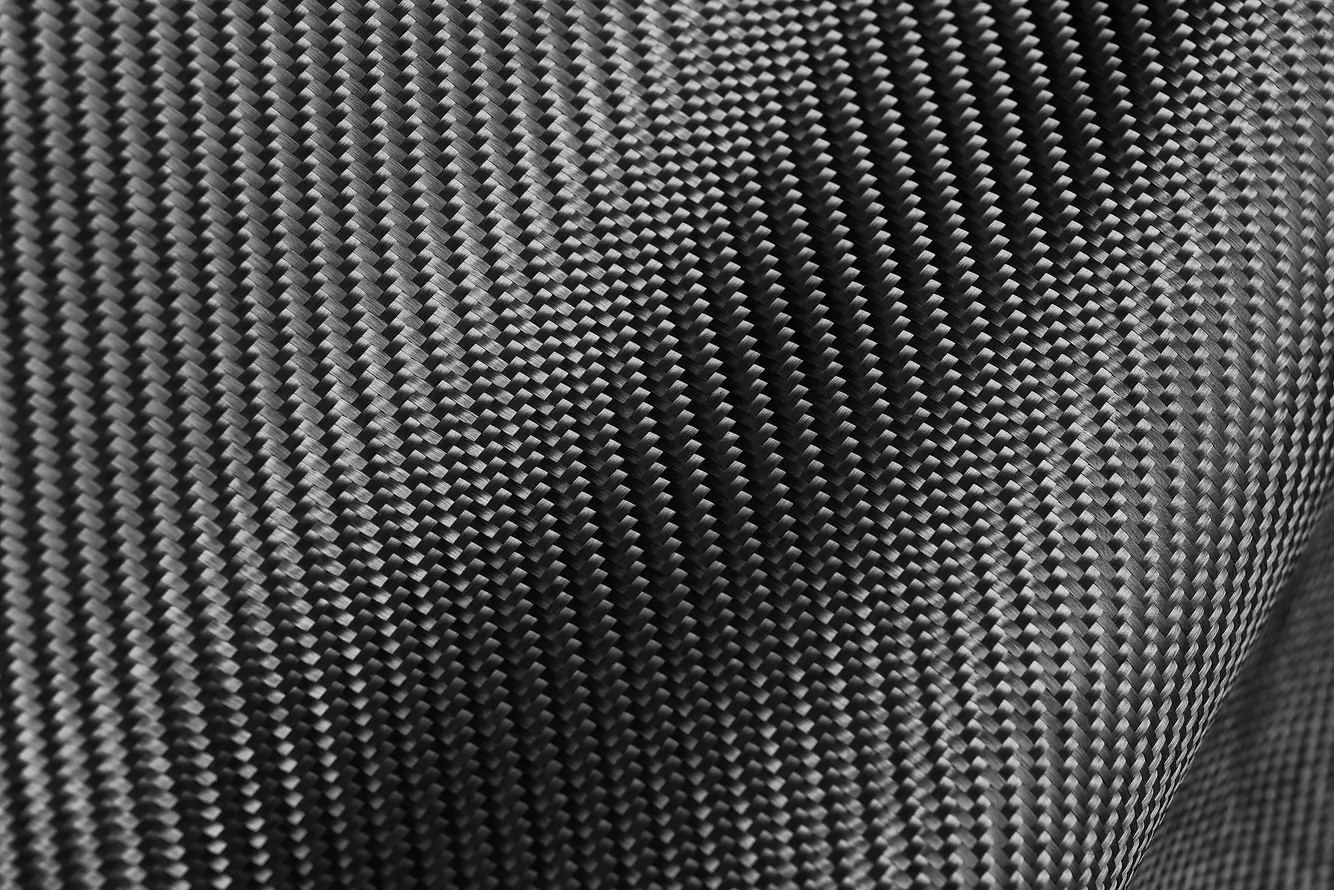

Aksa Carbon’s woven and non-woven carbon fabrics are engineered to deliver high strength, dimensional stability, and design flexibility for advanced composite applications.
Manufactured using our own high-performance carbon fibers, these fabrics ensure superior uniformity, low areal weight variation, and optimized drapability — critical for precision lay-ups and automated composite processes.
Available in a wide range of weaves, weights, and widths, Aksa Carbon fabrics provide excellent mechanical properties, conductivity, and surface quality, making them ideal for aerospace, automotive, wind energy, marine, and sporting goods applications.

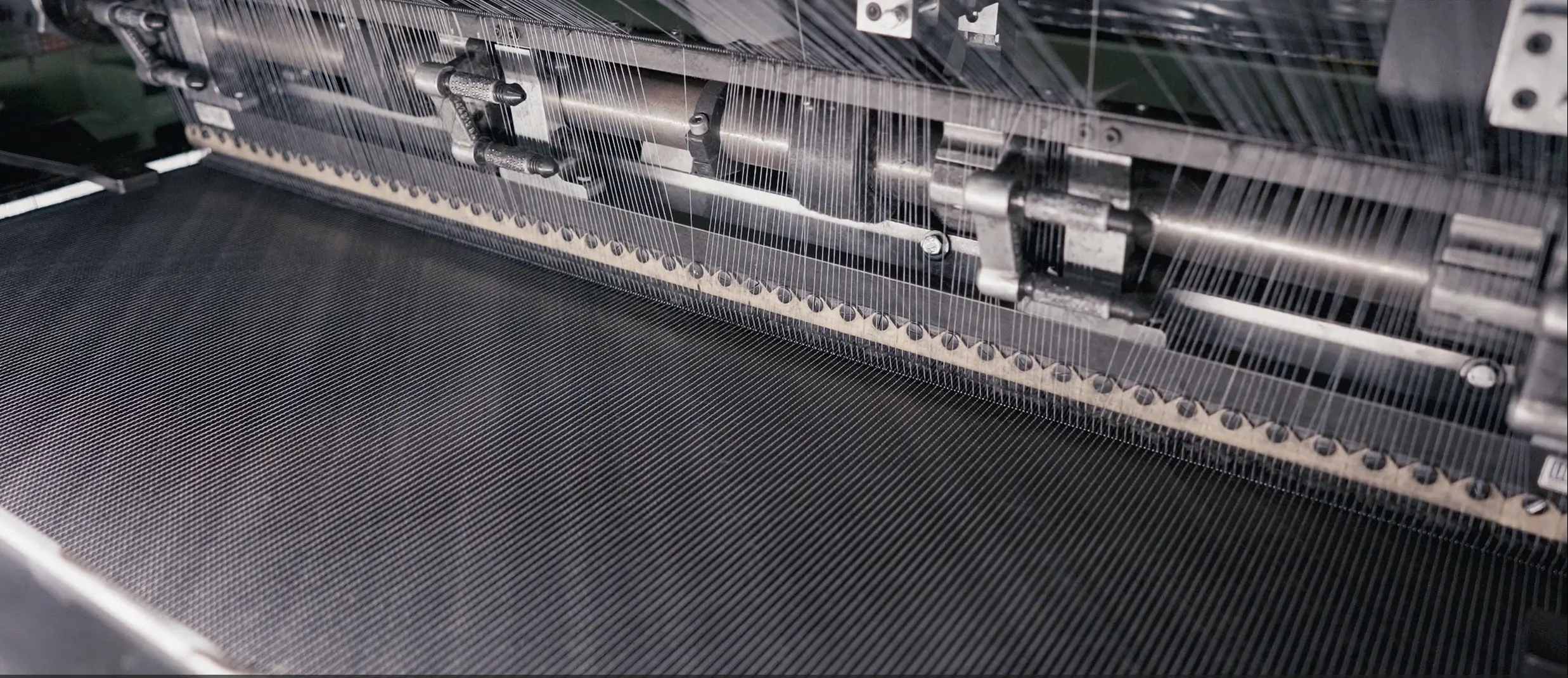

Our advanced production and inspection systems guarantee tight tolerances and repeatable performance, while our R&D team collaborates with customers to tailor fiber architecture, resin compatibility, and finishing treatments for specific manufacturing needs.
From unidirectional to multiaxial, from lightweight structures to heavy-duty reinforcements — Aksa Carbon Fabrics are built for precision, performance, and reliability.
| Fabric Type | Fiber Type | Fabric Areal Weight (g/m²) ±5% | Standard Width (cm) ±1% | Warp Count (ends/cm) | Weft Count (ends/cm) | Stitch Type | Stitch Gauge | Polyester Stitch Weight (g/m²) |
|---|---|---|---|---|---|---|---|---|
| Plain | Aksaca™ A38 | 195 | 120 | 4.8 | 4.8 | – | – | – |
| Plain | Aksaca™ A38 | 200 | 100 | 5 | 5 | – | – | – |
| Plain | Aksaca™ A38 | 245 | 100 | 6.1 | 6.1 | – | – | – |
| Plain | Aksaca™ A49 | 400 | 127 | 2.5 | 2.5 | – | – | – |
| Plain | Aksaca™ A49 | 600 | 50 | 15 | 15 | – | – | – |
| Plain | Aksaca™ A42 | 600 | 127 | 1.8 | 1.8 | – | – | – |
| Plain | Aksaca™ A49 | 680 | 50 | 17 | 17 | – | – | – |
| Plain | Aksaca™ A49 | 680 | 50 | 17 | 17 | – | – | – |
| Plain | Aksaca™ A42 | 1000 | 100 | 2.5 | 2.5 | – | – | – |
| Fabric Type | Fiber Type | Fabric Areal Weight (g/m²) ±5% | Standard Width (cm) ±1% | Warp Count (ends/cm) | Weft Count (ends/cm) | Stitch Type | Stitch Gauge | Polyester Stitch Weight (g/m²) |
|---|---|---|---|---|---|---|---|---|
| 2×2 Twill | Aksaca™ A38 | 160 | 100 | 4 | 4 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 193 | 100 | 4.8 | 4.8 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 200 | 120 | 5 | 5 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 200 | 30 | 5 | 5 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 200 | 100 | 5 | 5 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 245 | 100 | 6.1 | 6.1 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 245 | 50 | 6.1 | 6.1 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 245 | 100 | 6.1 | 6.1 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 285 | 115 | 7.1 | 7.1 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 380 | 127 | 9.5 | 9.5 | – | – | – |
| 2×2 Twill | Aksaca™ A49 | 400 | 127 | 2.5 | 2.5 | – | – | – |
| 2×2 Twill | Aksaca™ A49 | 430 | 100 | 2.6 | 2.6 | – | – | – |
| 2×2 Twill | Aksaca™ A49 | 600 | 120 | 3.7 | 3.7 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 600 | 125 | 1.8 | 1.8 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 600 | 127 | 1.8 | 1.8 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 600 | 120 | 1.5 | 1.5 | – | – | – |
| 2×2 Twill | Aksaca™ A49 | 660 | 100 | 4.1 | 4.1 | – | – | – |
| 2×2 Twill | Aksaca™ A49 | 660 | 50 | 4.1 | 4.1 | – | – | – |
| 2×2 Twill | Aksaca™ A38 | 660 | 150 | 16.5 | 16.5 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 670 | 150 | 2.1 | 2.1 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 670 | 127 | 4.1 | 4.1 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 680 | 50 | 2.1 | 2.1 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 680 | 100 | 2.1 | 2.1 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 800 | 127 | 2.5 | 2.5 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 850 | 127 | 2.6 | 2.6 | – | – | – |
| 2×2 Twill | Aksaca™ A42 | 1000 | 100 | 2.5 | 2.5 | – | – | – |
Our Sales Team is ready to assist you with more information about our products and customized solutions.
